Acrylic Laser Engraving

Which Acrylics Are Suitable for Laser Engraving?

  • Cast Acrylic

    Cast Acrylic

    Cast acrylic engraves cleanly and produces a frosted appearance on the engraved area.

  • Extruded Acrylic

    Extruded Acrylic

    Extruded acrylic tends to produce a rougher edge compared to cast acrylic, and the engraving results may be less consistent.

  • Colored Acrylic

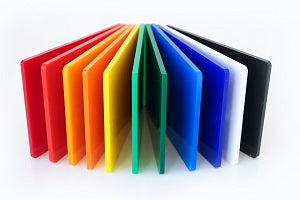

    Colored Acrylic

    Colored acrylic is a popular choice for laser engraving due to its versatility and aesthetic appeal.

  • Transparent Acrylic

    Transparent Acrylic

    Transparent acrylic opens up creative possibilities for laser engraving, due to its clarity and light-transmitting properties.

  • Matte Acrylic

    Matte Acrylic

    Matte acrylic is a type of acrylic that offers a non-glossy, diffuse finish, making it particularly suitable for laser engraving.

  • Satin Acrylic

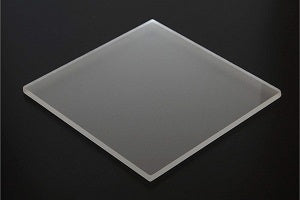

    Satin Acrylic

    Satin acrylic has a smooth, satin-like finish that falls between matte and glossy, providing a luxurious appearance.

  • Mirrored Acrylic

    Mirrored Acrylic

    Laser engraving removes the mirrored coating to reveal the acrylic underneath, creating a contrasting effect.

What Is Acrylic?

Acrylic, also known as poly(methyl methacrylate) or PMMA, is a transparent thermoplastic material that is widely used as a lightweight and shatter-resistant alternative to glass.

Acrylic - AKA the brand names of Plexiglas, Lucite, Acrylite, and Perspex - is one of the plastics for its dazzling glossiness and its remarkable scratch and impact resistance. It even boasts a greater load-bearing capacity than polycarbonate, one of the toughest materials.

Acrylic is available in various forms, including sheets, rods, tubes, and pellets. It can be extruded or cast, each method offering slightly different properties and applications.

What Is Acrylic Laser Engraving?

Acrylic laser engraving is a precise and versatile method of marking or decorating acrylic surfaces using a focused laser beam. This technology allows for detailed designs, text, and patterns to be engraved onto acrylic sheets with high accuracy and clarity. The process involves directing the laser beam onto the acrylic surface, where it selectively removes material to create permanent markings.

Acrylic laser engraving is valued for its ability to produce intricate and customized results, making it popular for applications such as signage, awards, decorative items, and architectural elements.

What Types of Lasers Can Be Used for Acrylic Engraving?

1. CO2 Lasers:
CO2 lasers are the most widely used for acrylic engraving. They emit a beam with a wavelength of 10.6 micrometers, which is highly absorbed by acrylic material. CO2 lasers are effective at achieving both shallow surface engravings and deeper cuts into acrylic. They can engrave on various types of acrylic, including clear, colored, matte, and satin finishes.


2. Fiber Lasers:
While primarily used for metal engraving, fiber lasers with wavelengths around 1 micrometer can also engrave acrylic. Fiber lasers are suitable for surface marking and lighter engraving on acrylic, but may not provide the same depth control as CO2 lasers. They excel in marking and engraving fine details and producing high-contrast marks.


3. UV Lasers:
UV lasers operate at wavelengths typically around 355 nanometers, suitable for marking and engraving on certain types of acrylic. UV lasers are known for their ability to create very fine details and precise engravings. They are used when minimal heat impact and precise marking are critical, such as in electronics and medical device industries.


4. Diode Lasers:
Diode lasers are lower in power compared to CO2 lasers and are often used for engraving smaller acrylic items or for hobbyist applications. They can achieve surface marking and light engraving, suitable for personalized items and crafts.

Tips for Acrylic Laser Engraving

1. Choose the Right Type of Acrylic:
Use acrylic sheets specifically designed for laser engraving. Ensure they are free from coatings or additives that could affect the engraving quality.

2. Consider Masking:
Some acrylic sheets come with a protective masking film. Leaving this film on during engraving can help reduce smoke residue and protect the acrylic surface from scratches. Remove the masking carefully after engraving to reveal clean and crisp engraved areas.

3. Ventilation and Extraction:
Ensure adequate ventilation in your workspace to remove smoke and fumes generated during engraving. Proper ventilation helps maintain a clean engraving surface and protects your health.

4. Safety Precautions:
Always follow safety guidelines when operating laser engraving equipment. Wear appropriate protective gear, such as safety glasses, to protect against laser light.

How to Laser Engrave Acrylic?

1. Design Preparation: Create or import your design into vector graphics software like Adobe Illustrator or CorelDRAW. Ensure your design is sized appropriately for your acrylic sheet.

2. Machine Setup: Power on the CO2 laser engraving machine and ensure it's properly calibrated and focused. Follow manufacturer instructions for setup.

3. Acrylic Placement: Secure the acrylic sheet onto the engraving bed using clamps or masking tape to prevent it from shifting during engraving.

4. Import Design: Import your design file into the laser engraving software. Arrange and position it on the acrylic sheet within the software.

5. Configure Settings: Adjust laser settings such as power, speed, and resolution based on the thickness and type of acrylic. Start with lower power settings and gradually increase if needed.

6. Start Engraving: Start the engraving process using the software interface. Monitor the initial passes to ensure alignment and settings are correct.

7. Monitor Progress: Allow the laser engraver to complete the engraving process. Monitor progress to ensure the design is being engraved as desired.

8. Cool Down: Once engraving is complete, allow the acrylic to cool down if necessary before handling.

9. Post-Engraving Steps: Remove any protective masking or tape from the acrylic surface. Clean the engraved area with a soft cloth and mild cleaner to remove any debris or residue.

10. Evaluate and Adjust: Inspect the engraved acrylic to ensure the quality meets your expectations. Make note of any adjustments needed for future projects.

11. Safety Precautions: Throughout the process, wear appropriate eye protection and follow all safety guidelines provided by the machine manufacturer to ensure safe operation.

FAQs About Laser Engraving Acrylic

Is cast or extruded acrylic better for laser engraving?

While both cast and extruded acrylic can be laser engraved, cast acrylic tends to offer superior engraving results due to its smoother surface and uniformity. However, extruded acrylic remains a viable option for applications where cost-effectiveness and availability in larger sizes are key considerations. The choice ultimately depends on your specific project requirements and budget constraints.

What are some common applications of laser engraved acrylic?

Laser engraved acrylic is used for signage, displays, awards, trophies, personalized gifts, architectural models, and decorative items. It is popular in industries such as retail, hospitality, manufacturing, and arts due to its versatility and aesthetic appeal.

How does laser engraving work on acrylic?

Laser engraving uses a focused laser beam to remove material from the surface of acrylic. The heat from the laser vaporizes or melts the acrylic at the point of contact, creating an engraved effect. This process produces a frosted or matte appearance on the engraved areas against the smooth surface of the acrylic.

How do I clean and maintain laser engraved acrylic?

After engraving, clean the acrylic surface with a soft cloth and mild cleaner to remove any residue or debris. Avoid using abrasive cleaners that could scratch the acrylic. Store engraved acrylic in a clean, dry place to prevent dust buildup.
